| Laboratory Mini Hot Press |
| | [ 修改时间：2013/7/25 10:30:52 浏览次数：9681] | | |
PRODUCT DETAIL
Product Overview

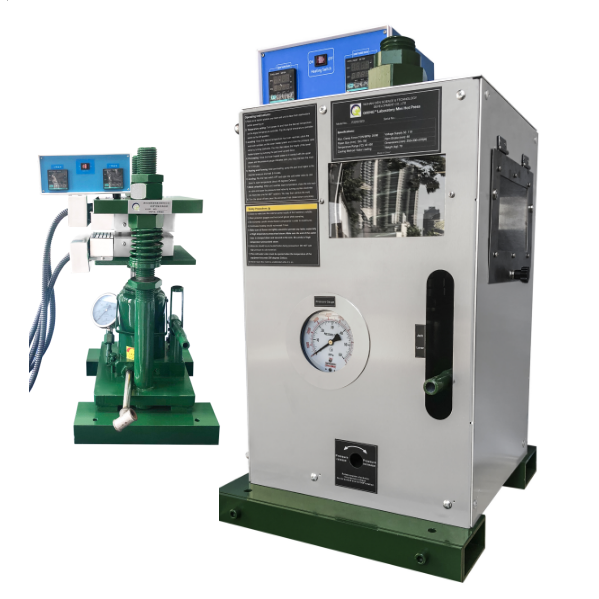

Our QixingTM Laboratory Mini Hot Press with an integral hydraulic system and high technology options is an optimized production press adapted to precision laboratory requirements. Its compact size and titanium alloy casing makes it lightweight and easy to transport, install, operate and maintain. Recommended for hot pressing of polymer composite materials to prepare plastic sheet, dumbbell bars, straight and notched bars, vertical combustion samples, oxygen index splines, etc.
MODEL:R-3202 . MODEL:R32022015
Product Features
- Light weighted (~70), easy to move
- Mini size, less space occupation (i.e.an area of a 15 inch notebook)
- Special stainless steel protection, water proof
- Build-up machine and replaceable parts, easy to install and maintain
- High security using manual pressure control
- One joint only, high pressure sealing and oil-leak free
- One machine for multiple purposes, capable of making dumbbell samples, impact notch samples, etc., can save the punching machine, universal prototype machine
- Water cooling, smooth samples with shortened sample preparation time
Product Specifications
|
Product Name
|
QixingTM Laboratory Mini Hot Press
|
QixingTM Laboratory Mini Hot Press – Base Model
|
|
Model #
|
R32022020
|
R32022015
|
|
Clamp Force (Ton/Mpa)
|
25/60
|
25/60
|
|
Ram Stroke (mm)
|
65
|
65
|
|
Platen Size (mm)
|
150×150
|
150×150
|
|
Cooling
|
Water
|
Water
|
|
Temperature Display Accuracy
|
+/-1 %
|
+/-1 %
|
|
Max temperature (°C)
|
40-450
|
40-300
|
|
Voltage Supply (V)
|
110
|
110
|
|
Unit Dimensions
W x D x H (mm)
|
250×330×570(H)
|
250×330×570(H)
|
|
Weight (kg)
|
70
|
75
|
|
Power (KW)
|
1.6
|
1.6
|
Photo of a Sample Prepared by QixingTM Laboratory Mini Hot Press
A polycaprolactone(PCL)-Starch composites sheet (100*100mm) prepared by Model # R32022020 and dumbbell bars obtained via dumbbell cutter.
(Prototype sample of 63.5*9.53 mm, ASTM 638 Type V standard)
So our small Press is the best choice for laboratory.R series of small hot press for experiment with lots of customers. they are Wuhan University, Huazhong University of Science and Technology, Huazhong Normal University, Tsinghua University, Wuhan Institute of technology, South China Agricultural University, Sichuan University, Tianjin University, Chinese Academy of Sciences, South China University of technology, Shanghai, Jiangnan University, Shanghai Jiao Tong University, Zhejiang University, Southeast University, Northeast Forestry University, Donghua University, Beijing Institute of Chinese Academy of Sciences, North China Electric Power University, Dalian University of technology, Huazhong Agricultural University, Wuhan Textile University, Nanjing University of Information Science and Technology, Jianghan University, Nanjing University of Technology, Wuhan Iron and Steel Corporation, Nanjing University of Aeronautics and Astronautics etc... Customers reflect the good. Precision test product picture and temperature to http://email.163.com, see the whqienpolymer@163.com mailbox, the password is "qwertyu".
